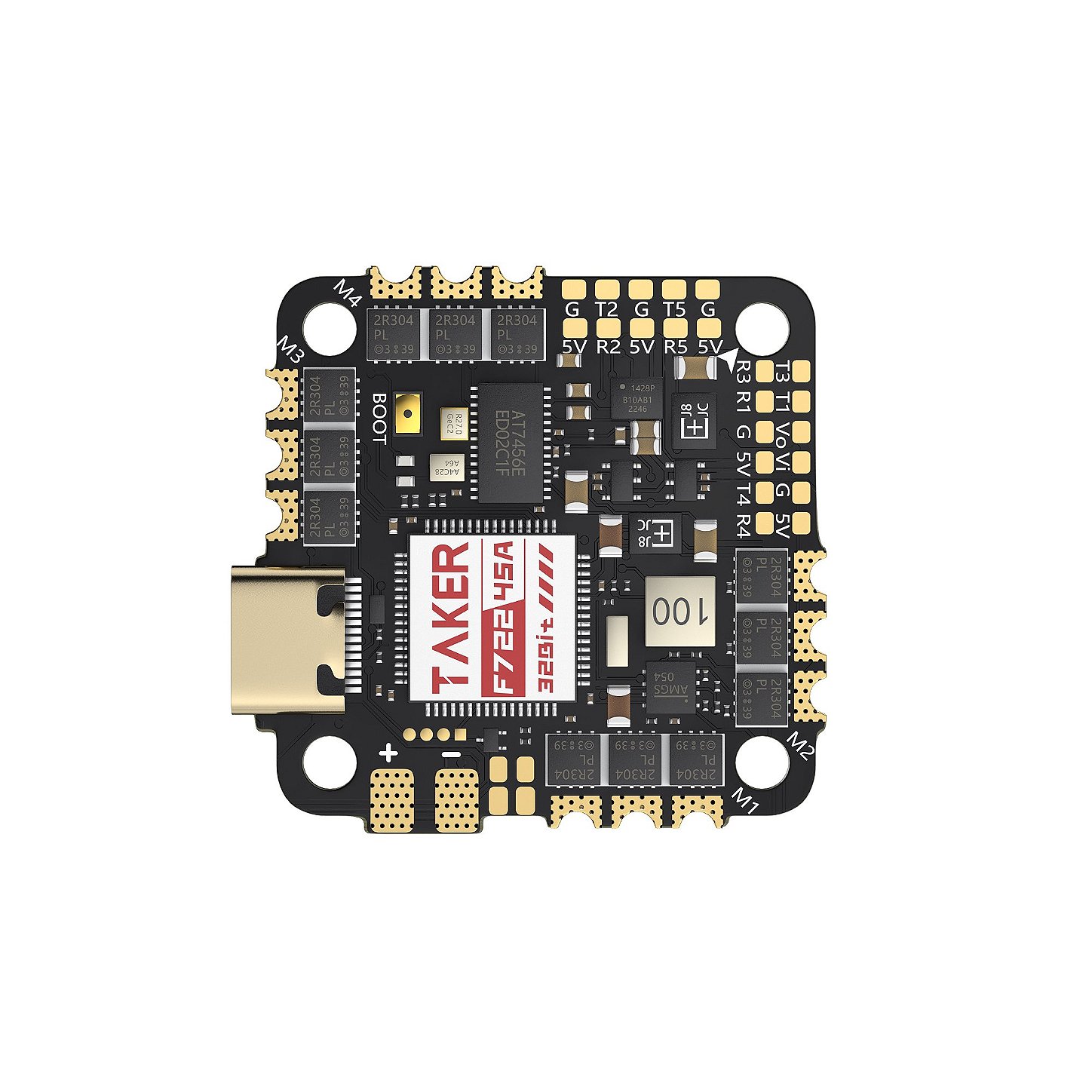

FC AIO GEPRC F722 45A (cinelog 35 e 35 performance e 35 v2)

Código: 6UKFNUHAA Marca: Geprc

R$ 899,00

Qtde: Comprar agora Estoque: Disponível

Parcelas
- 1x de R$ 899,00 sem juros
- 2x de R$ 460,24
- 3x de R$ 313,98
- 4x de R$ 240,87
- 5x de R$ 195,96
- 6x de R$ 165,56
- 7x de R$ 143,64
- 8x de R$ 126,39
- 9x de R$ 113,10
- 10x de R$ 103,03
- 11x de R$ 94,80
- 12x de R$ 87,95
Parcelas
- 1x de R$ 899,00 sem juros
- 2x de R$ 483,84
- 3x de R$ 327,33
- 4x de R$ 249,16
- 5x de R$ 201,93
- 6x de R$ 170,29
- 7x de R$ 147,33
- 8x de R$ 130,61
- 9x de R$ 117,56
- 10x de R$ 106,67
- 11x de R$ 98,17
- 12x de R$ 91,11
R$ 899,00

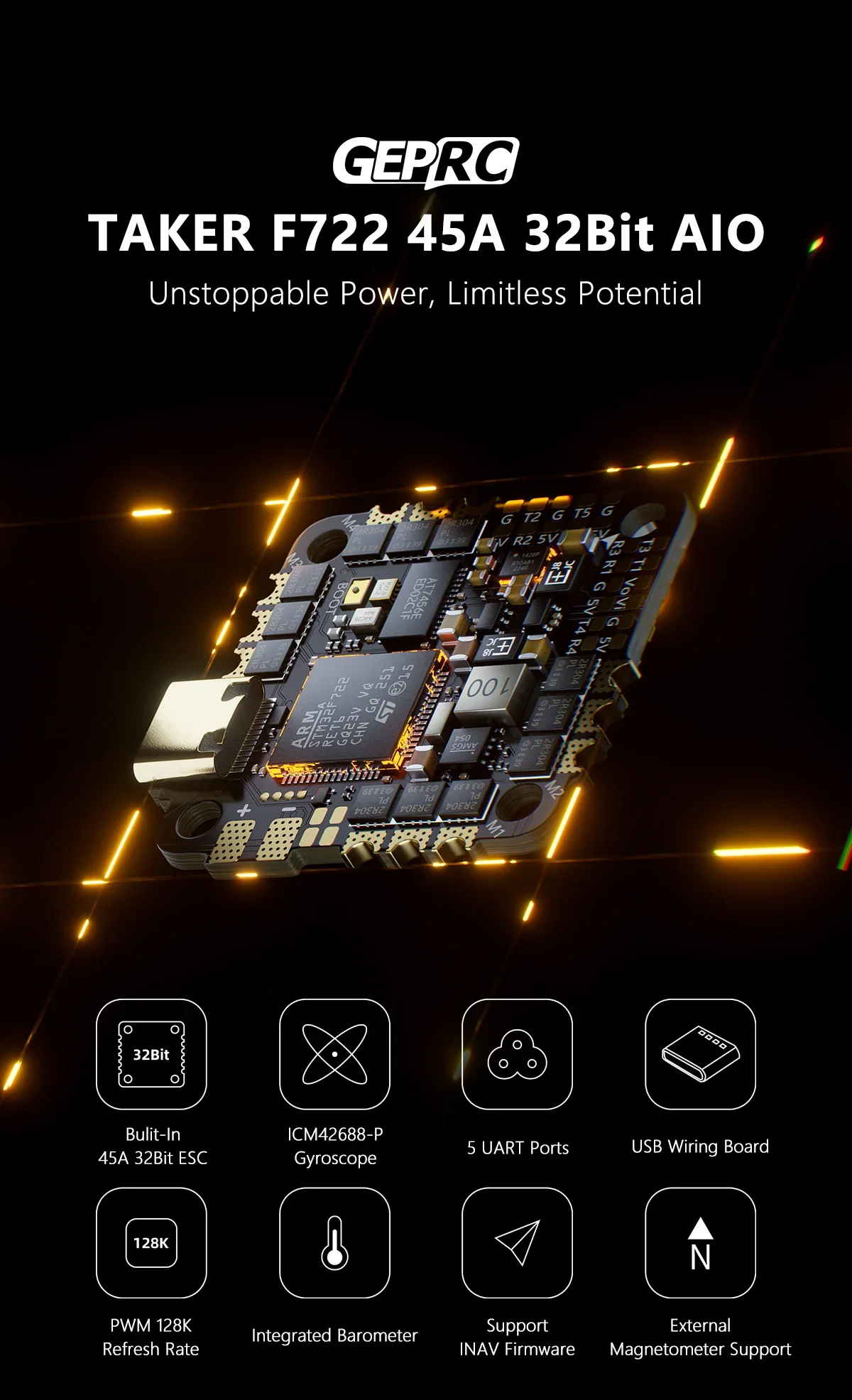

I am glad to introduce a new member of GEPRC FC AIO,GEP-F722-45A AIO, it is released now.

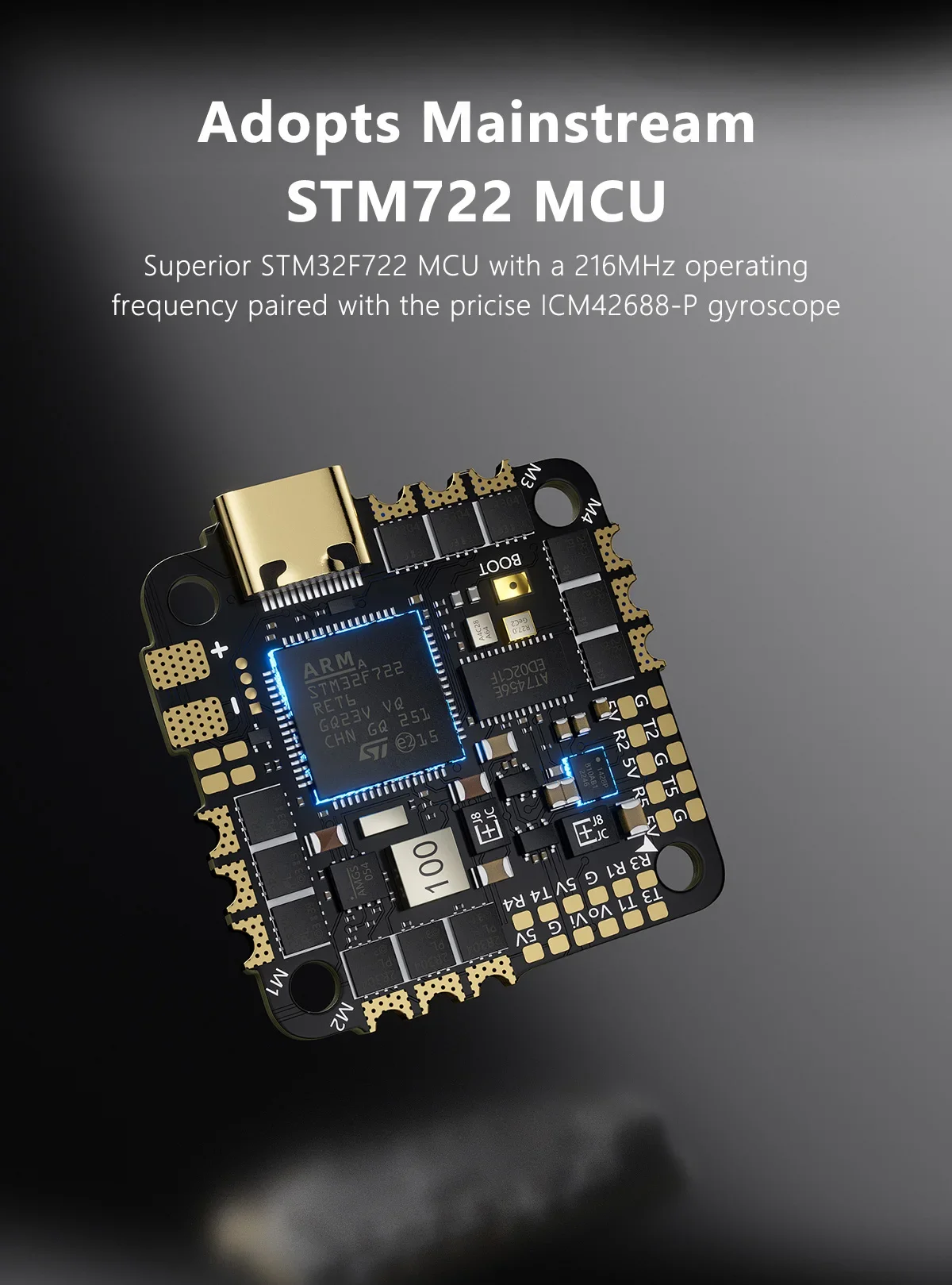

GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

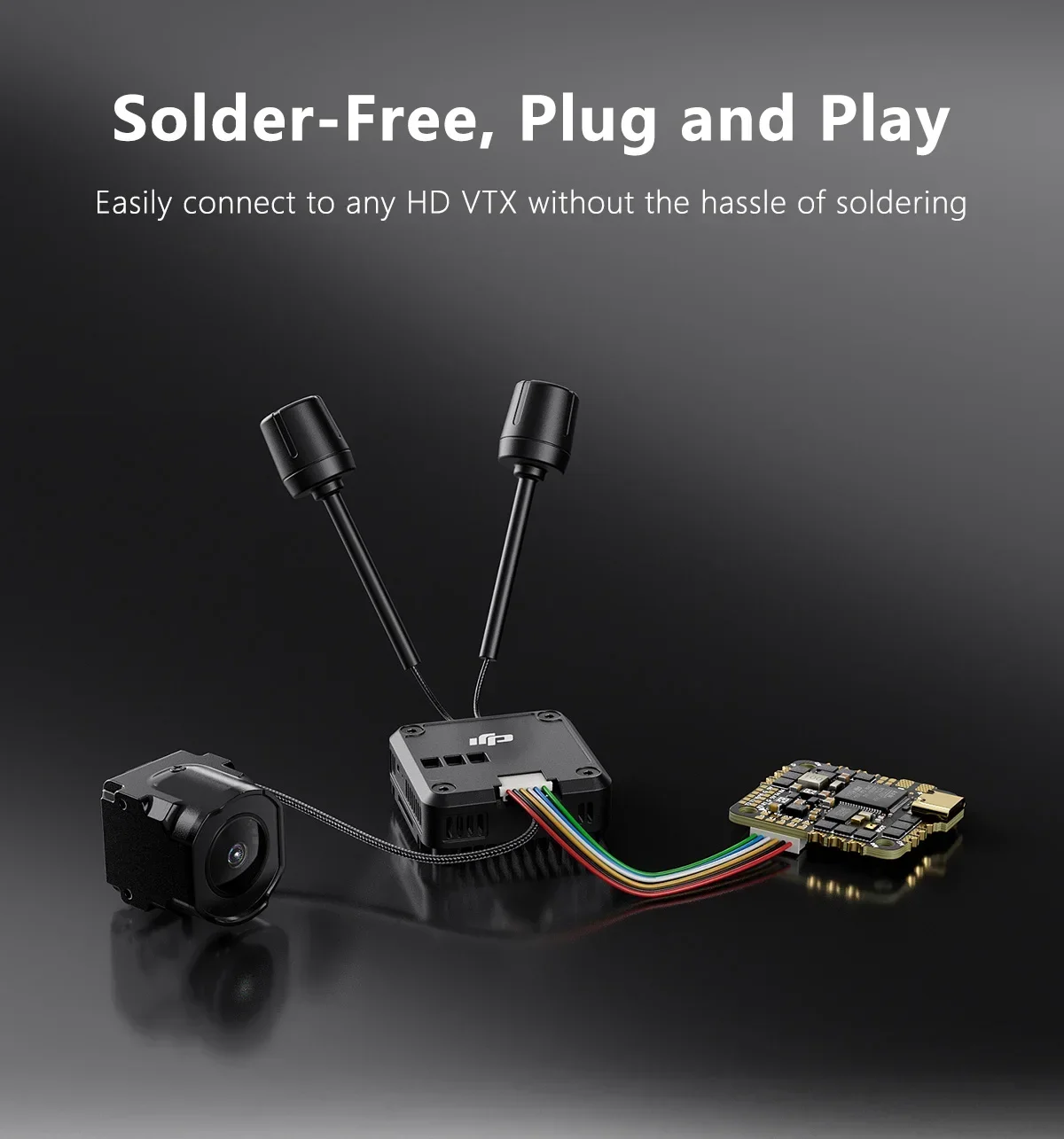

We designed a 6-pin connector for DJI AIR UNIT MODULE,plug and play.

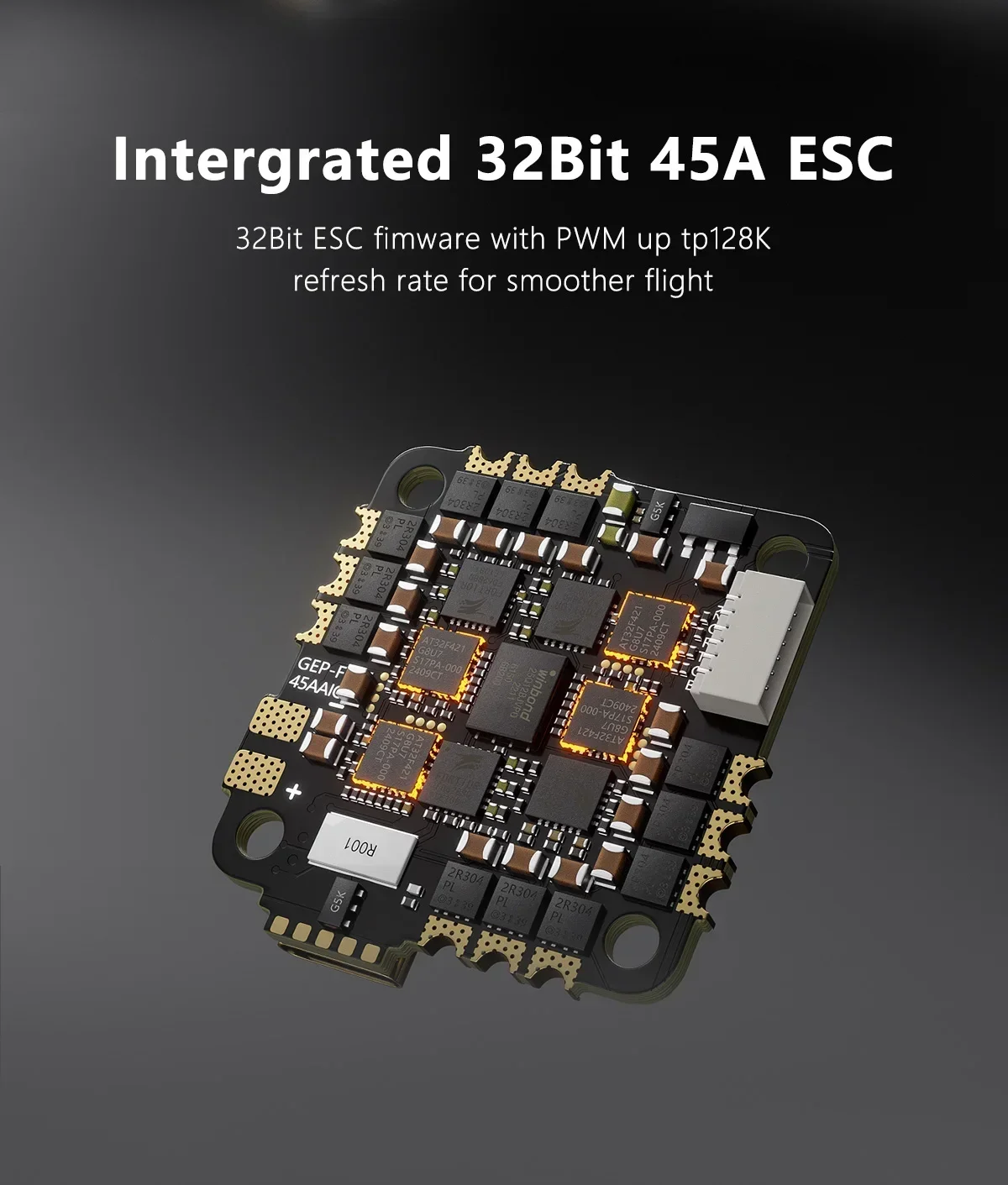

The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.

We pursue lighter weight, smaller volume, more functions and better performance Flight controller.

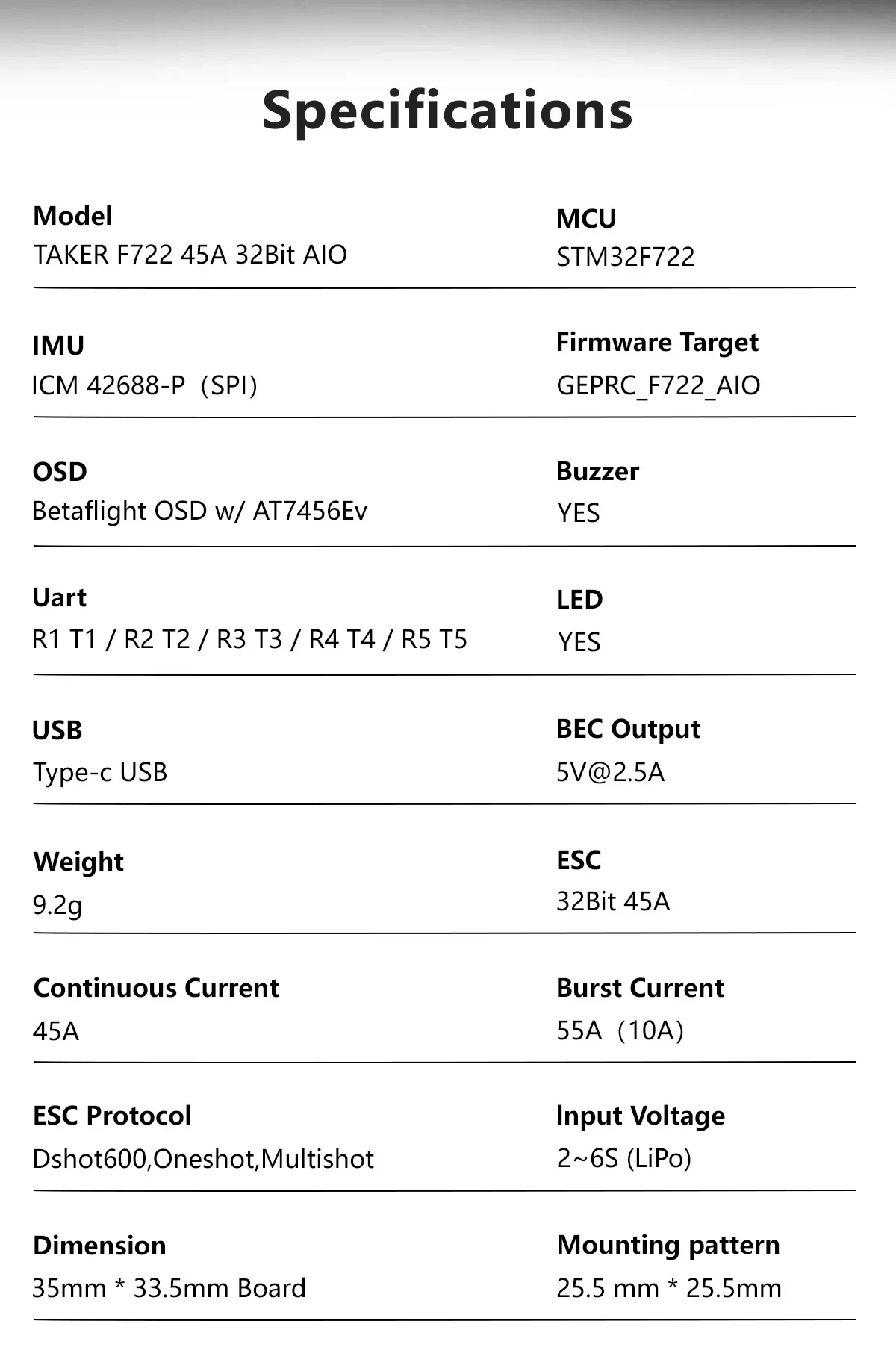

Specification：

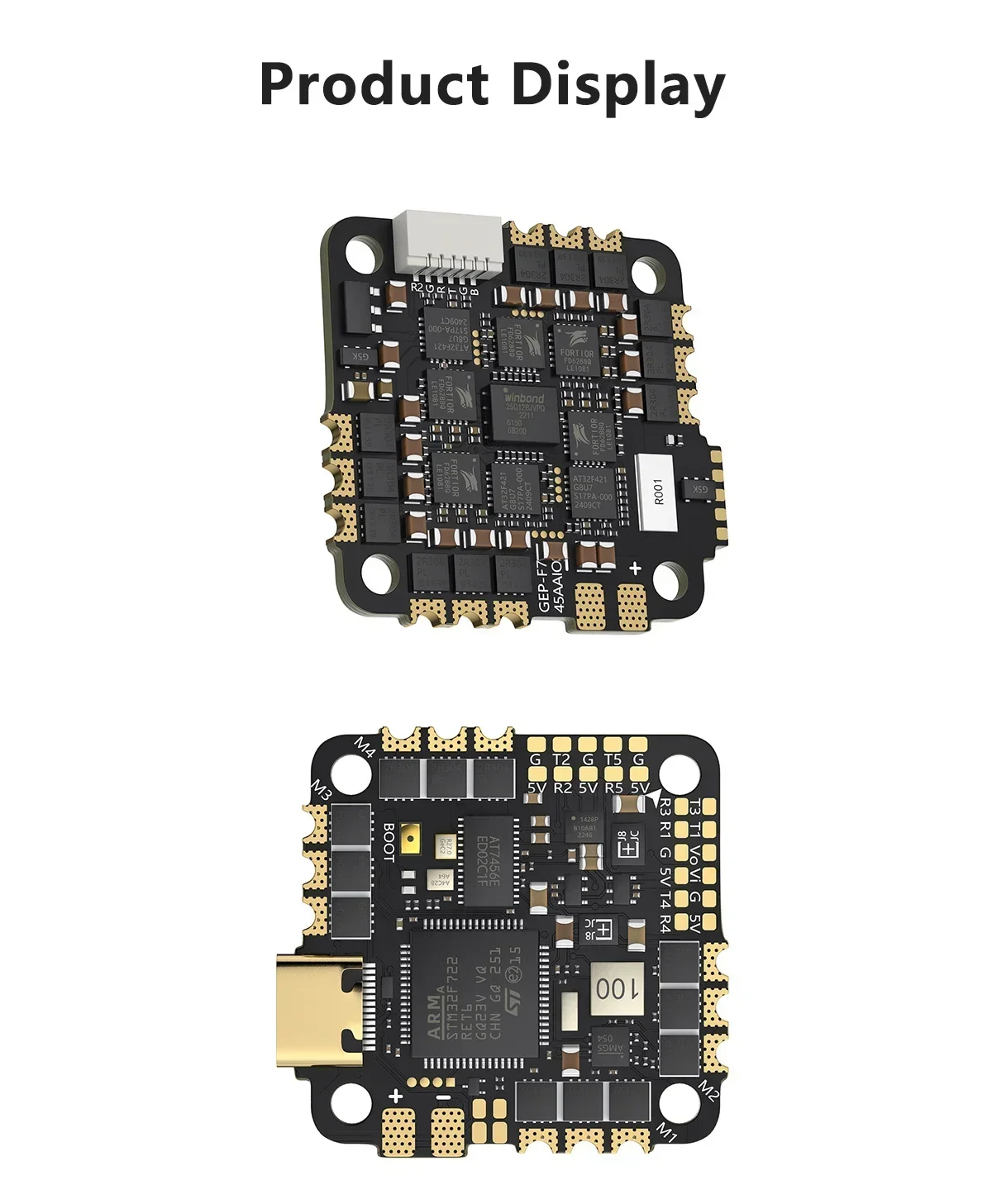

Model Name: GEP-F722-45A AIO V2
MCU: STM32F722
IMU: 42688 gyro/accelerometer(SPI)
Firmware target: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev

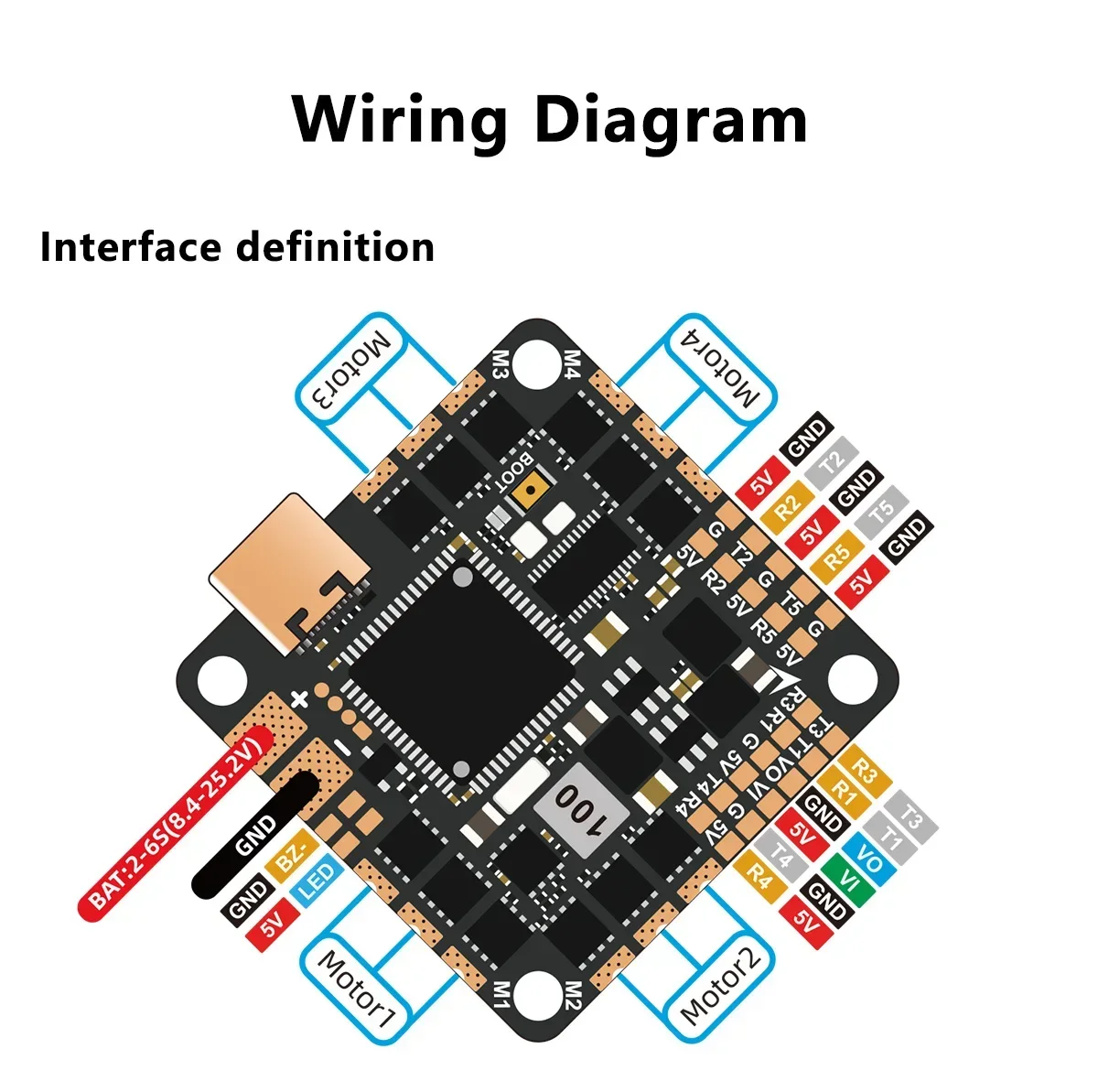

UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Intergrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 45A
MAX current: 55A (10s)
Input: 2~6S
Supports: Dshot600,Oneshot,Multishot
BlackBox: 16Mb
Traget: G_H_30

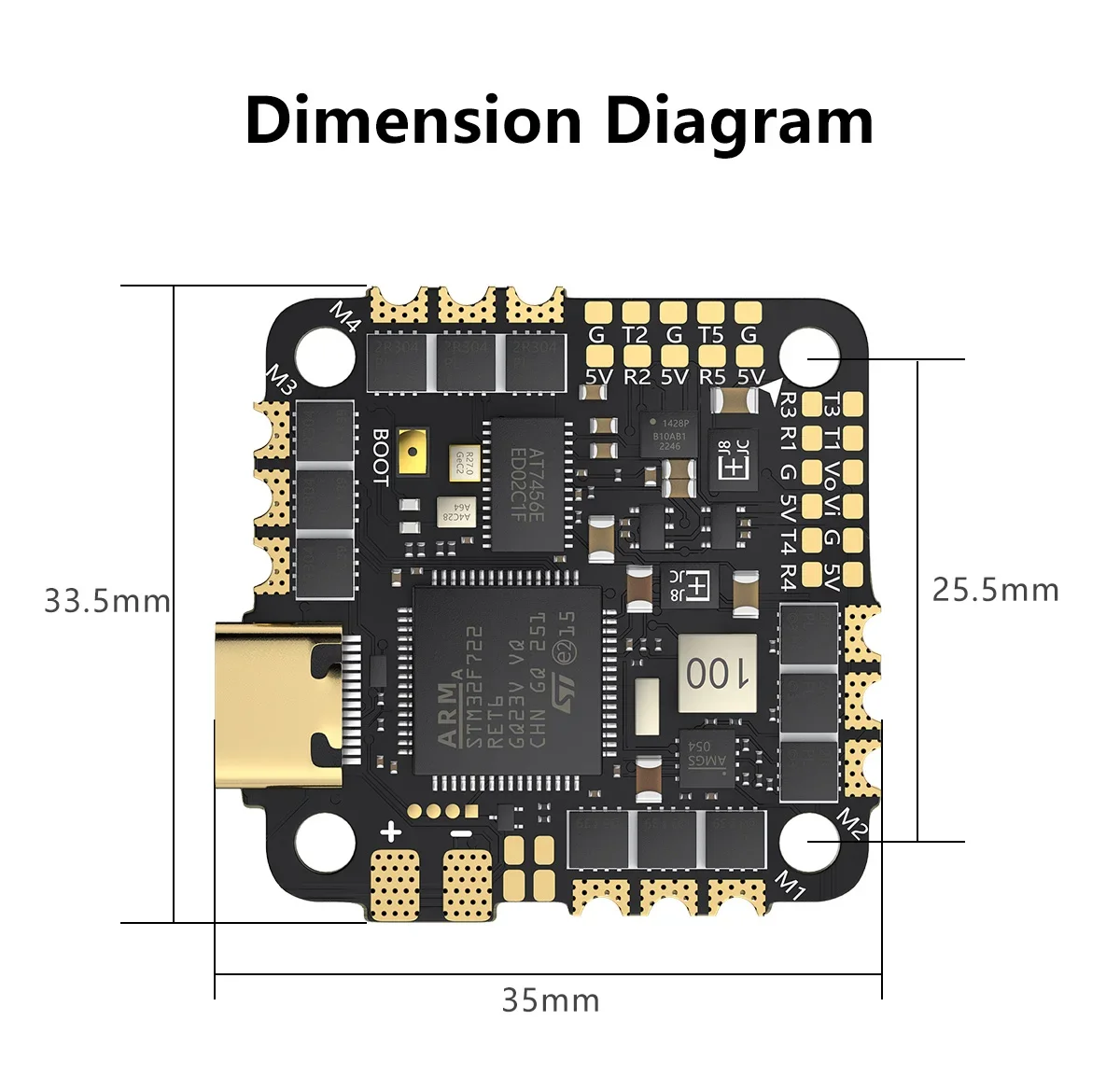

Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm

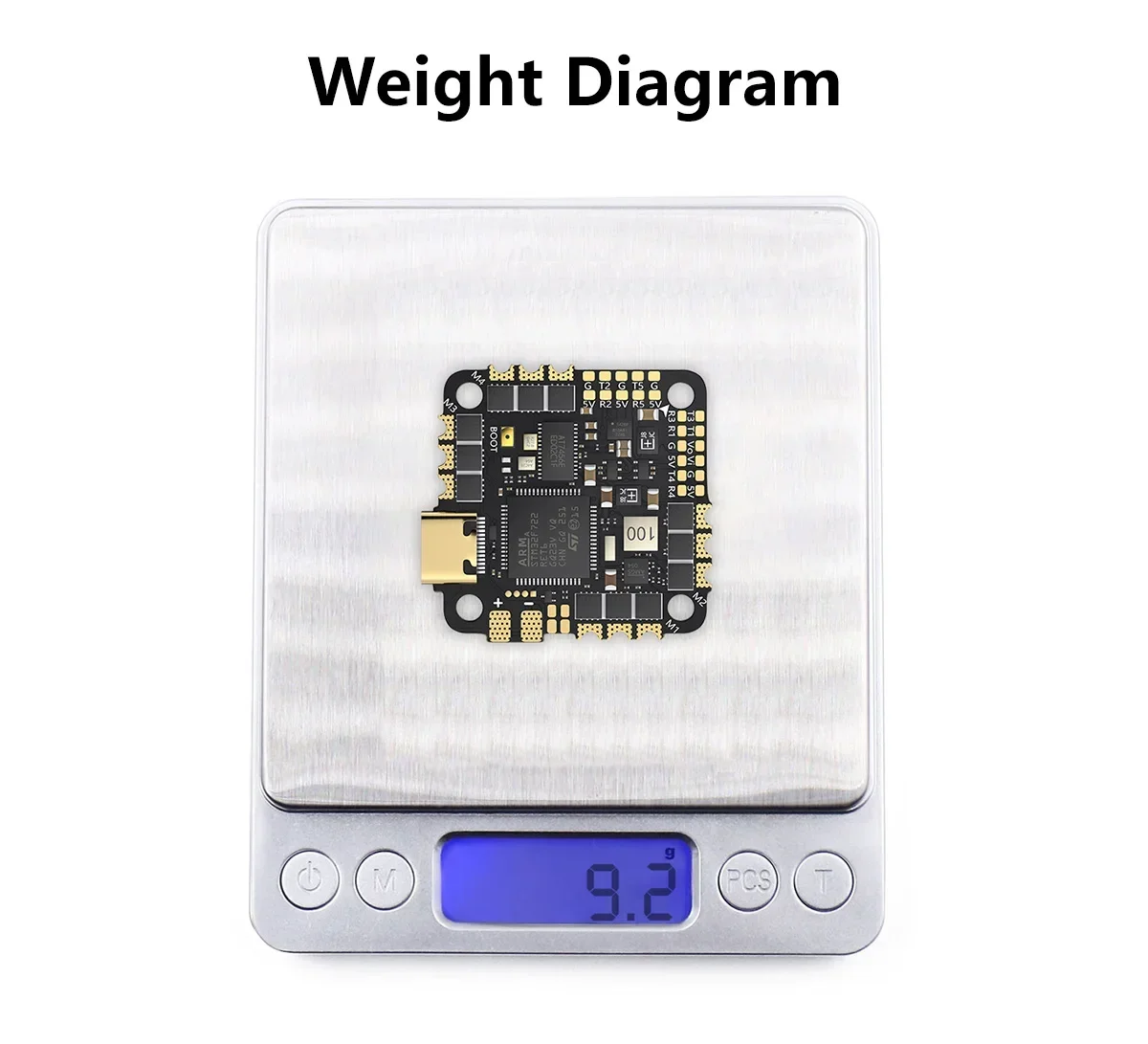

Weight: 8.8g

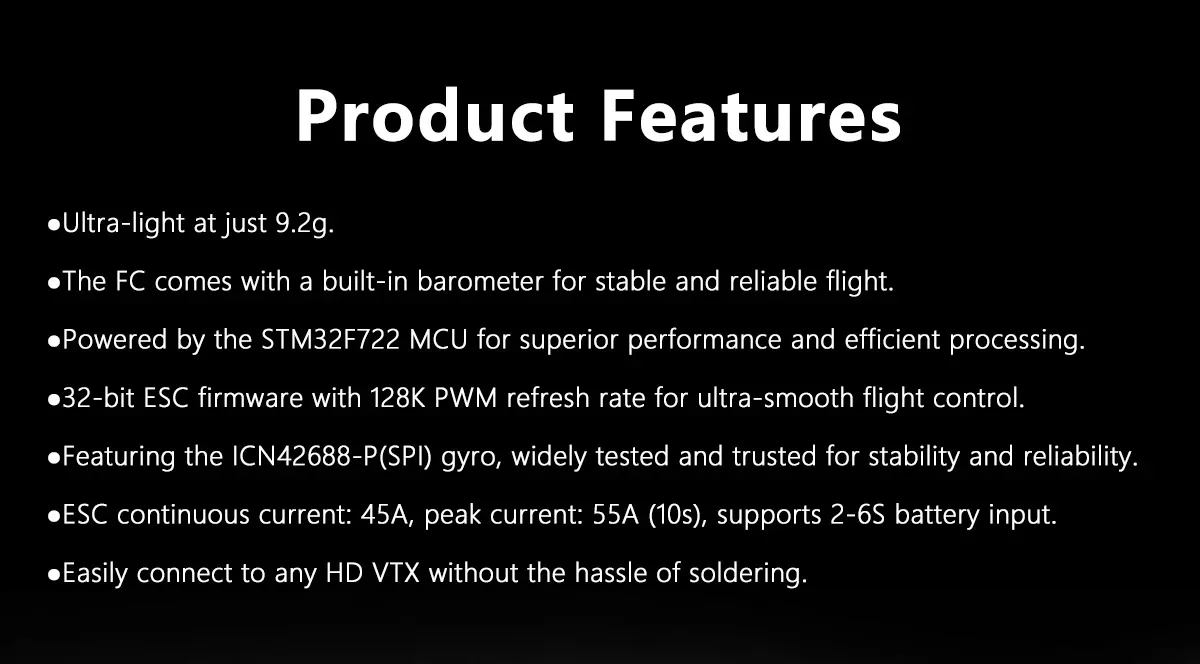

Features:

MCU:STM32F722,with strong performance and higher computing speed.
It has 5 full UART ports, which can connect more external devices
Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.
8g ultra light weight
5mm * 25.5mm mounting hole, suitable for most frames

Includes:

1 x GEP-F722-45A AIO V2
1 x XT30-7CM-18AWG Power cables
1 x 35V220UF capacitor
1 x SH1.0-6Pin to GH1.25-8Pin cables
8 x M2*6.5mm Damping rings

Manual:

GEP-F722-45A AIO USER MANUAL.pdf
