Frame Geprc Vapor 5 X para O4 pro

Código: WV4HYXK9E

R$ 599,00

até 12x de R$ 61,03

Qtde: Comprar agora Estoque: Disponível

Parcelas
- 1x de R$ 599,00 sem juros
- 2x de R$ 328,37
- 3x de R$ 222,09
- 4x de R$ 166,76
- 5x de R$ 136,94
- 6x de R$ 114,13
- 7x de R$ 99,88
- 8x de R$ 87,40
- 9x de R$ 79,66
- 10x de R$ 72,27
- 11x de R$ 65,70
- 12x de R$ 60,95
R$ 599,00
R$ 599,00
R$ 599,00

Summary

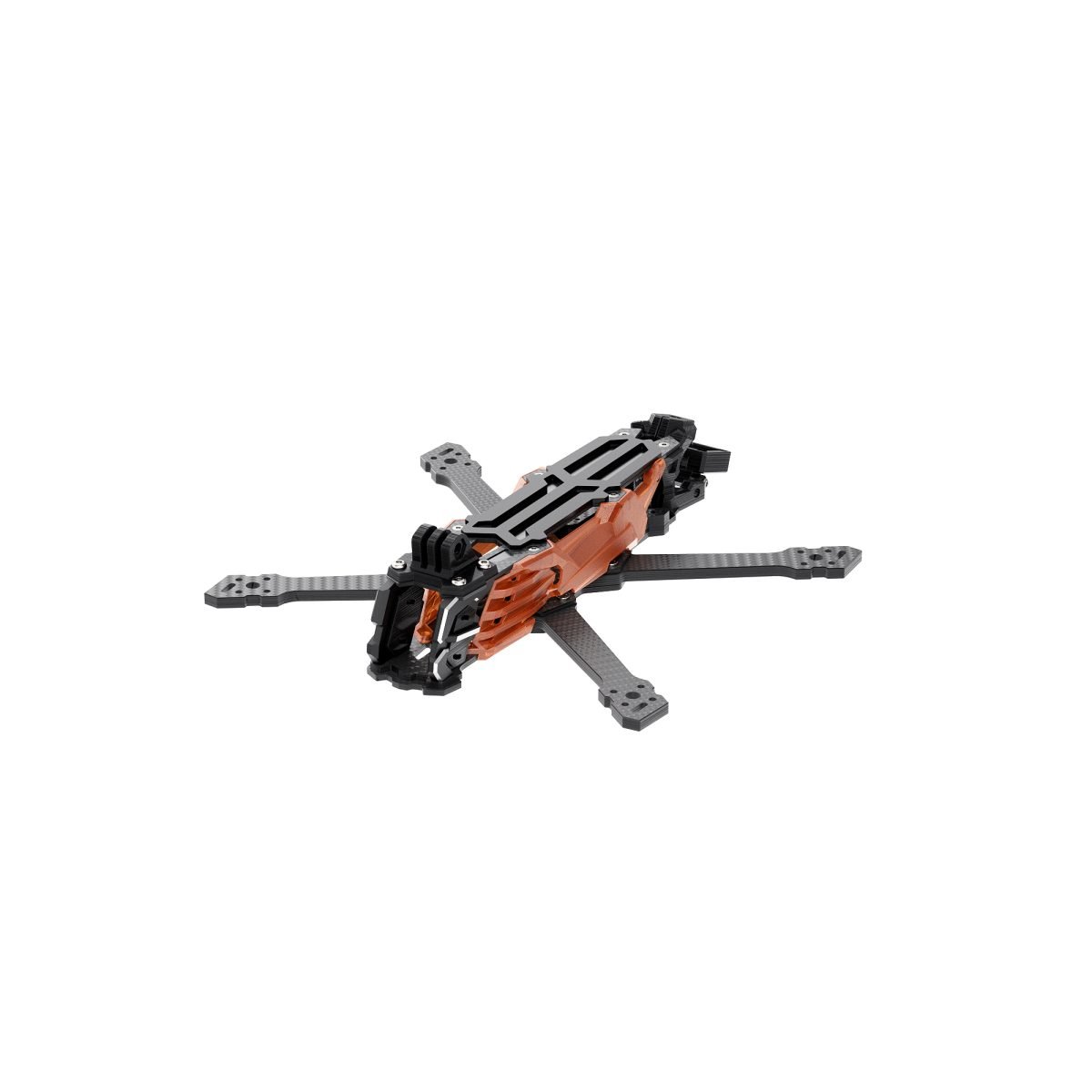

The GEPRC team presents the Vapor O4 Pro frame, designed specifically for the DJI O4 Air Unit Pro.
With redesigned aluminum camera parts and improved vibration-damping silicone, this frame offers better compatibility. The new mech-inspired side panels add a bold, sharp look, enhancing the frame’s stylish design. Made from high-strength carbon fiber, it’s lightweight yet durable, ensuring top-notch performance in any flight.
With its XH structure, the GEP-Vapor-X O4 Pro frame offers superior stability and precise handling.

Features

1. 5mm wide carbon fiber arms for better rigidity and durability.

2. Dual protection with camera guard side panels and a front lip design for better impact resistance.

3. Quick-release design for easy repairs and maintenance.

4. Redesigned aluminum camera mount, perfectly matched to the O4 Pro VTX.

5. New mech-inspired side panels with a bold, sharp design.

6. Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.

X5 Specifications

Model: GEP-Vapor-X5 O4 Pro Frame
Wheelbase: 230mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0mm
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 5-inch
Weight: 206±5g

X6 Specifications

Model: GEP-Vapor-X6 O4 Pro Frame
Wheelbase: 254.5mm
Top Plate Thickness: 2.0mm
Middle Plate Thickness: 2.0mm
Arm Thickness: 5.0m
Bottom Plate Thickness: 2.5mm
FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
Motor Mounting Hole Size: 16x16mm
Camera Mounting Hole Size: 19mm / 20mm
Recommended Propeller: 6-inch
Weight: 214.1±5g

X5 Includes

1 x GEP-Vapor-X5 O4 Pro Frame

2 x M20*250mm battery straps

2 x Battery silicone Pads

1 x Set of screws

1 x Printout package

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 x M8 wrench

X6 Includes

1 x GEP-Vapor-X6 O4 Pro Frame
