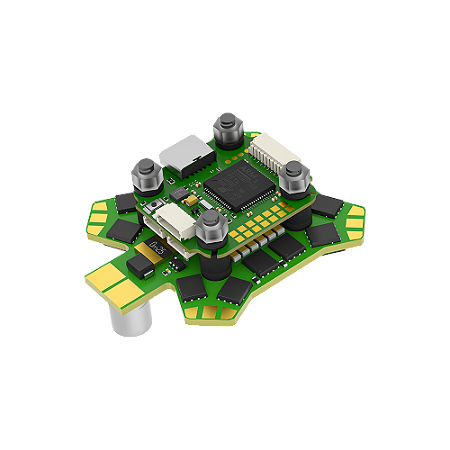

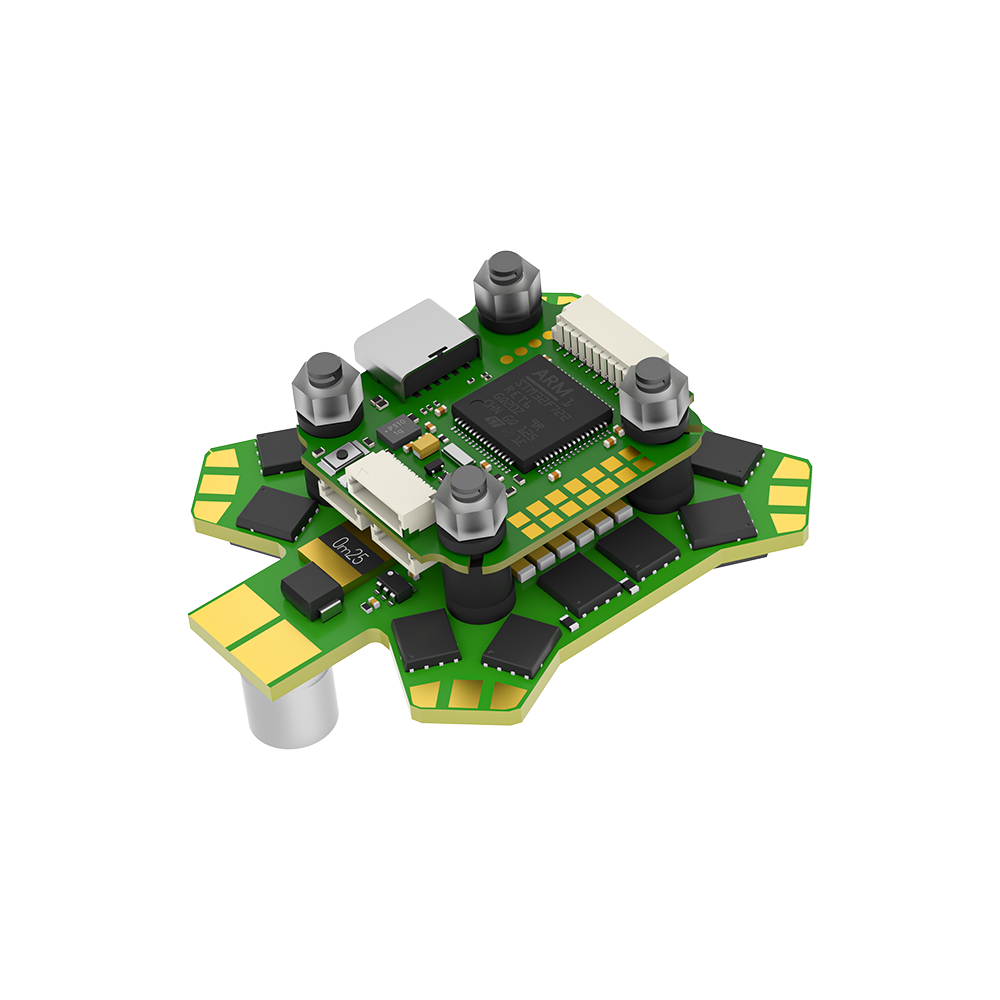

Iflight BLITZ Mini F7 Stack (E55R 4-IN-1 ESC)

The next generation of ESCs from iFlight has arrived. These new 55Amp BLHeli32 BLITZ 4in1 ESCs can handle even the most amp-hungry motors. Lager Mosfets and bigger PCB for maximum heat dissipation. Powerful 55A for 2-6S batteries and 20x20 mounting pattern. The perfect match for the BLITZ Flight Controller series.

July 31, 2024: Version updated. Since BLheli32 Configuration is closed due to regulatory issues, if you need to adjust the parameters of this ESC, please download "BLHeliSuite32Test" in the "Download" column of this page.

Improved circuit design, better components and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456

Flash: 8MB (Blackbox flash)

UARTS: 6

I2C serial: SDA/SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 20x20 mm/φ4

Dimensions: 30.5x27 mm

Weight: 5g

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

Product Name: BLITZ E55R 4-IN-1 ESC (G3)

Mounting Holes: 20*20mm/Φ4mm

Weight: 15.3g

Supports 2-6S Lipo input

MCU: BB21

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/OneShot etc.

Target：IFLIGHT_BLITZ_G2 / IFLIGHT_BLITZ_G3 32.9 (blheli_32)

1 x BLITZ Mini F7 V1.2 Flight Controller

1 x BLITZ E55R 4-IN-1 2-6S ESC

1 x silicon grommets

1 x wire harness for F7 Flight controller

iFlight product is for fun purposes only and does not support autonomous flight.
