Radiomaster POCKET ELRS

VERSÃO ELRS (NÃO INCLUI BATERIAS 18650)

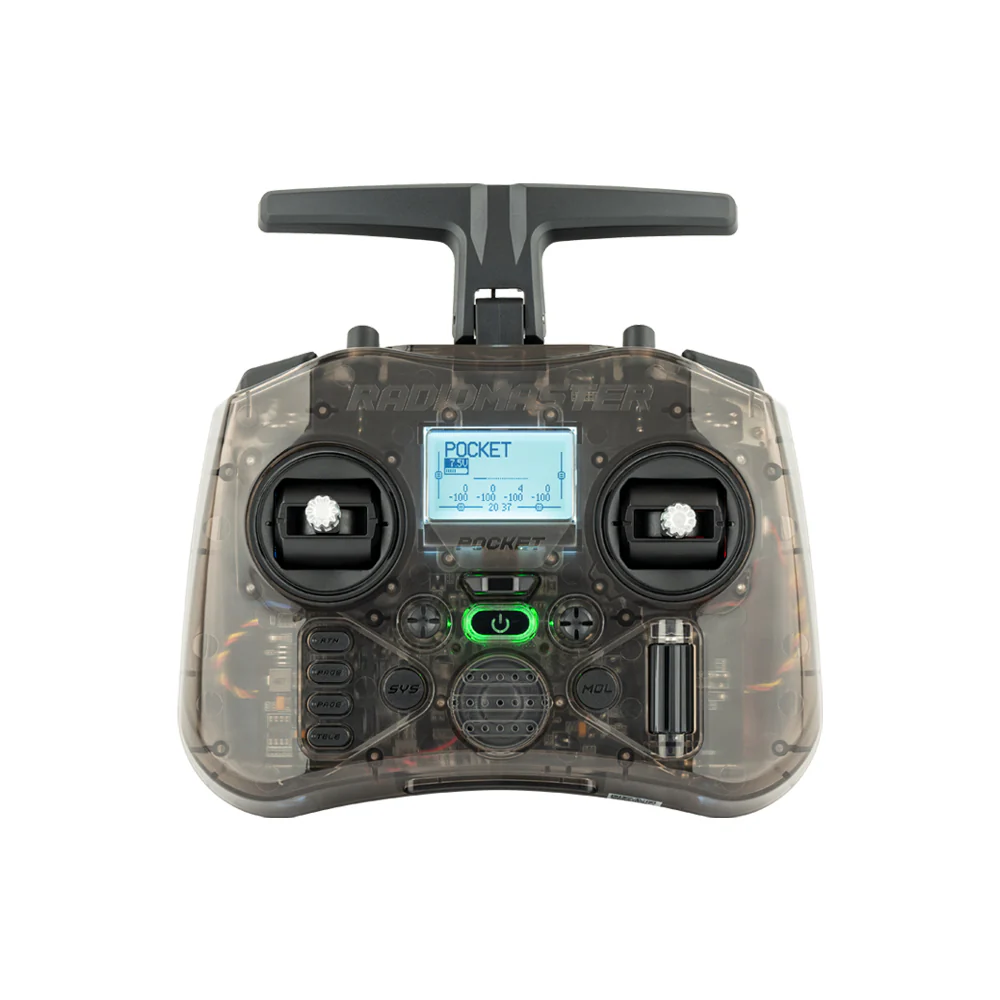

The RadioMaster Pocket is a small, lightweight radio that packs a big punch. It is available in two versions, ExpressLRS and MPM CC2500, and both versions come preinstalled with EdgeTX firmware. The Pocket is also equipped with removable stick ends and a foldable antenna, making it easy to transport and store. It is compatible with 18650 batteries, which provide long battery life for hours of fun.

In addition to the classic charcoal and transparent case colors, we have a range of optional color cases available in a selection of vibrant colors, including blue, pink, green, and orange. This allows you to personalize the radio to match your own unique style.

The RadioMaster Pocket is a great choice for pilots who are looking for a small, lightweight radio with all the powerful features you have come to expect.

The ExpressLRS 2.4GHz version which is awesome for those that are looking to push the limits of range and latency. ELRS is an open source transmission system with unrivaled capabilities. For the pro pilots or those simply seeking the best performance and link reliability, ELRS is definitely the right choice for you!

GIMBAL ADJUSTMENT

A L-R
To switch M1/M2. Turn clockwise to disable self-centering (Throttle). Turn counterclockwise to enable self-centering (Elevator).
B T
To adjust the throttle stick tension. Turn clockwise to increase stick tension. Turn counterclockwise to decrease stick tension.
C UP-DOWN
Turn clockwise to increase vertical stick tension.
Turn counterclockwise to decrease stick tension.
D LEFT-RIGHT
Turn clockwise to increase horizontal stick tension.
Turn counterclockwise to decrease stick tension.

DIMENSIONS

RADIO OVERVIEW

FEATURES:

• Available in ExpressLRS and MPM CC2500 versions
• Preinstalled with EdgeTX firmware
• 18650 Batteries, all the power you need for hours of fun (Batteries not included)
• Portable and lightweight design with removable stick ends and foldable antenna
• Features hall effect gimbals as standard for smooth cantering & precise response
• Built-in LED lights help visualize your switch inputs
• Backlit LCD Screen offering a perfect balance of size and functionality
• Trim buttons for easy channel trimming
• External Module Bay compatible with RadioMaster Nano-size modules and TBS Nano Crossfire/Nano Tracer
• 2 Stylish Colors of Charcoal & Transparent version and optional case colors in Blue, Pink, Green, and Orange to suit your style

SPECIFICATIONS:

• Item: Pocket Radio
• Physical dimensions: 156.6*65.1*125.3mm (Folded size) /156.6*73.1*154.8mm (Unfold size）
• Weight: 288 grams
• Operating frequency: 2.400GHz-2.480GHz
• Internal RF Options: CC2500 multi-protocol / ELRS 2.4GHz
• Supported protocols: Module dependent
• RF power: CC2500:100mW Max (20dBm) / ELRS FCC: 250mW Max (24dBm) / ELRS EU-LBT: 100mW Max (20dBm)
• Operational voltage: 6.6-8.4v DC
• Control distance: > 2km @ 20dBm
• Operating system: EdgeTX
• Control channels: Maximum 16 (Receiver dependent)
• Display: 128*64 Monochrome LCD
• Battery: 2pcs 18650 batteries (Not included)
• Charging: Built in USB-C QC3 Charging
• Upgradable Firmware: Via USB or the included SD card
• Gimbal: Hall-effect
• Module bay: Nano size (Compatible with RadioMaster Nano-size modules, TBS Nano Crossfire / Nano Tracer )

PACKAGE INCLUDES:

• 1 * Pocket Radio
• 1 * Custom Carry Pouch
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 * Sticker
• 4 * Low Tension Springs
• 1 * Manual
