Receptor ELRS Geprc Nano ( 2.4ghz pa100 )

Código: 4PDJ5U34G Marca: Geprc

~~R$ 149,00~~ R$ 129,00

Qtde: Comprar agora Estoque: Disponível

R$ 129,00
R$ 129,00
R$ 129,00

GEPRC ELRS Nano 2.4G PA100 Receiver is a new generation of 2.4G receiver system based on ExpressLRS open source project.ExpressLRS features long range operation, low latency, maximum 1000Hz refresh rate, and low price.

The ELRS Nano 2.4G PA100 Receiver uses a TCXO temperature compensated crystal oscillator to avoid frequency shifts caused by temperature changes;Integrated PA+LNA,the telemetry power is up to 100mW; Built-in WIFI antenna, firmware upgrade operation through WIFI.

Feature

17x11mm Small size
0.7g weight
WIFI Upgrade firmware
ELRS open source project, remote control
Maximum refresh rate of 1000Hz
The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
Built-in PA + LNA, up to 100mW telemetry power

Specifications

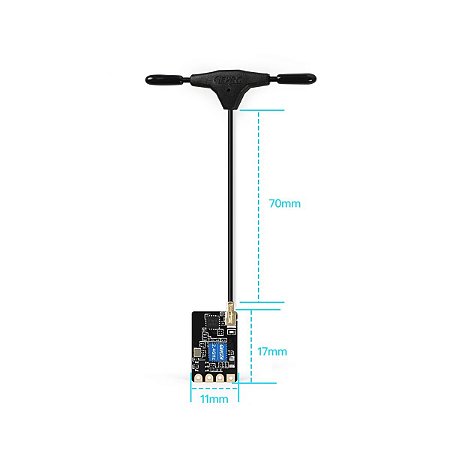

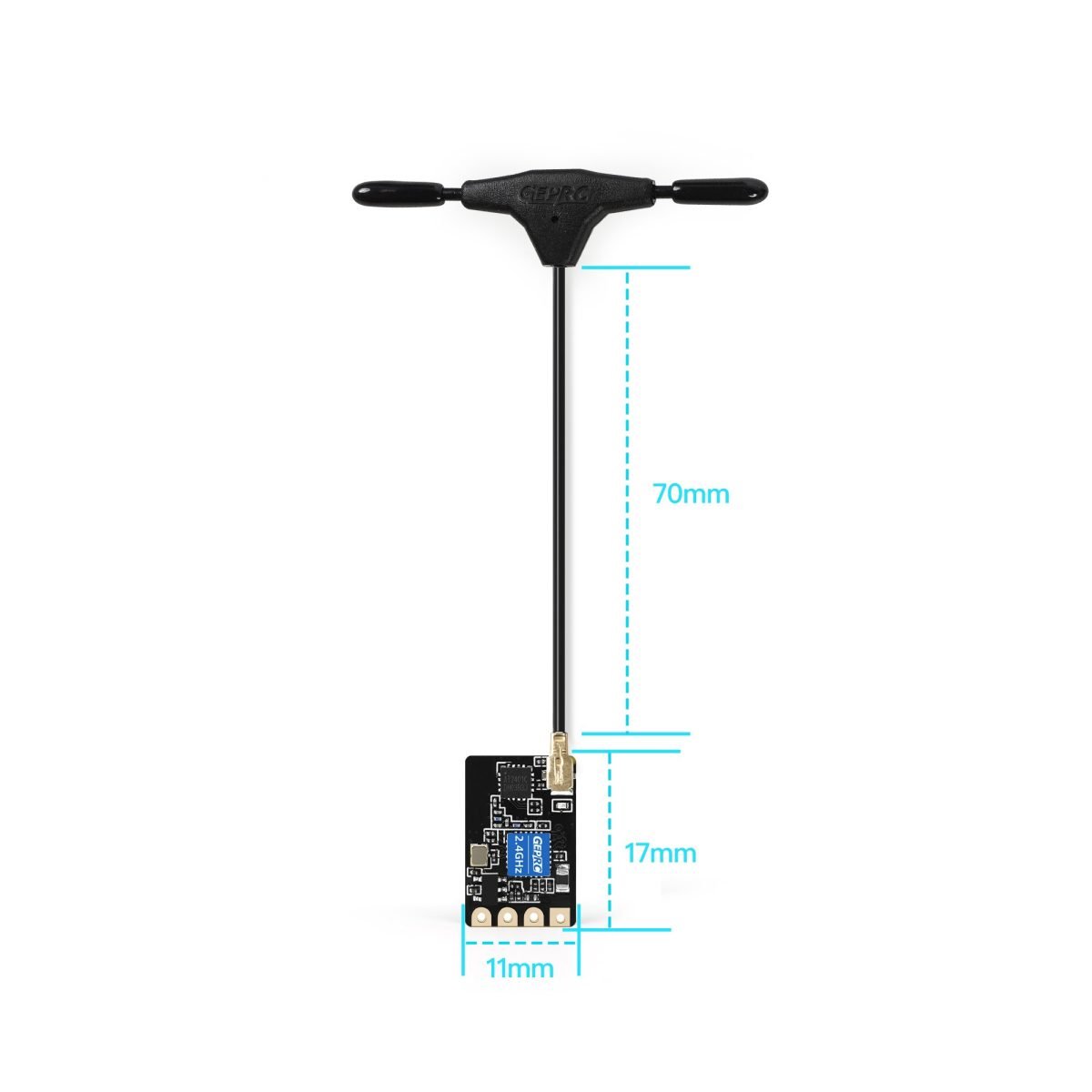

Size: 17x11mm
Weight: 0.7g (RX only)
Chips: ESP8285, SX1281
Crystal Oscillator: TCXO
Frequency Band: 2.4GHz ISM
Refresh Rate: 25Hz-1000Hz
Input Voltage: 5V
Antenna Connector: ipex1
TLM Power: 100mW
Firmware：GEPRC Nano 2.4GHz PA100 RX

Includes

1 x ELRS Nano 2.4G PA100 Receiver

1 x Antenna

1 x Heat shrink tube

4 x Silicone cable

1 x Pin (4pin)

1 x Instruction manual
